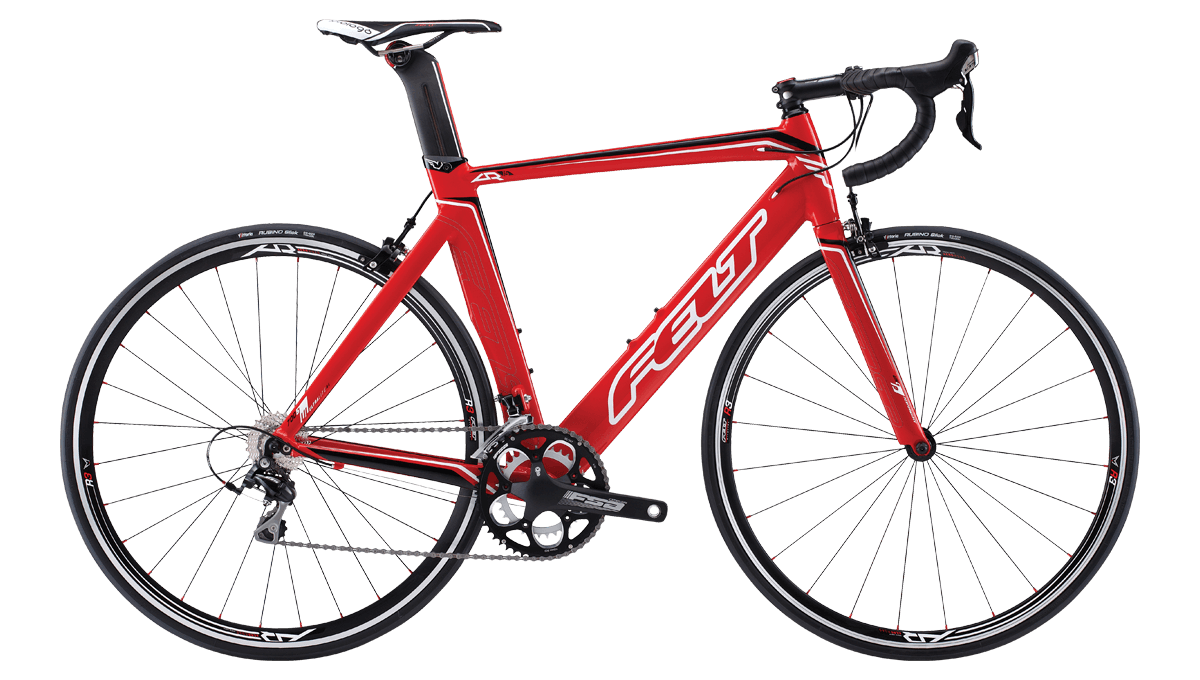

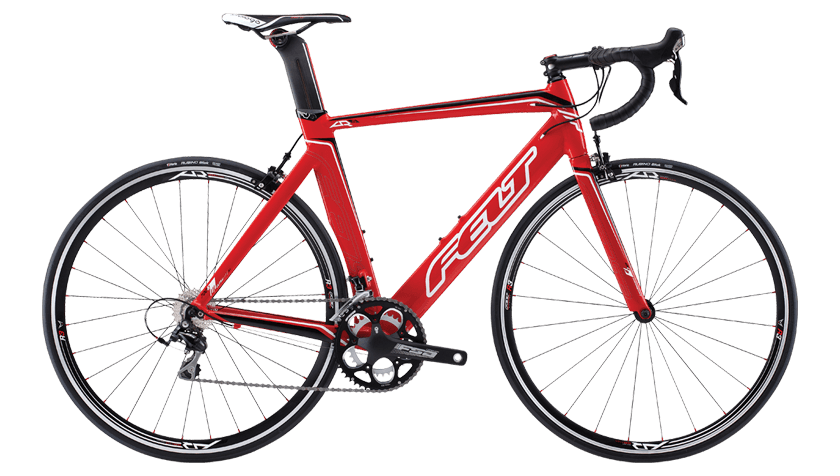

AR15
¥188,000(税込¥206,800)
レースレッド
480、510、540、560
-
SPEC
SIZE
Frame
UltraLite Custom Butted 7005 アルミニウム、BB30、internal cable routing
Fork
UHC Performance カーボン、アルミニウム コラム
Headset
FSA IS インテグレーテッド、1.125"
Stem
Felt SuperLite 48cm = 80mm、51cm = 90mm、54 - 56cm = 100mm
Handlebar
Felt Aero Road VariableShape、φ31.8mm 48cm = 380mm、51cm = 400mm、54 - 56cm = 420mm
Shifters
Shimano 105 11-スピード STI
Front Derailleur
Shimano 105 11-スピード 直付式
Rear Derailleur
Shimano 105 11-スピード
Crankset
FSA Omega BB30 48cm = 165mm、51cm = 170mm、54 - 56cm = 172.5mm
Chainwheel
FSA 50/34T
Bottom Bracket
FSA BB30
Freewheel / Cassette
Shimano 105 11-スピード、11-28T
Brake Levers
Shimano 105 11-スピード STI
Front Brake
Dual pivot caliper
Rear Brake
Dual pivot caliper
Saddle
Prologo Zero T2.0
Seat Post
Felt VR Aero UHC カーボン、3T DiffLock™
Seat Post Clamp
Felt Internaloc
Rims / Wheelset
Felt Aero Road R3
Front Hub
Felt Aero R3、24H
Rear Hub
Felt Aero R4、28H、11-スピード 互換
Spokes
2.0mm ステンレス
Tires
Vittoria Rubino Slick、700 x 23c
Accessories
-
GEOMETRY
| Size | 480 | 510 | 540 | 560 | |
|---|---|---|---|---|---|
| HA | 71 | 72.5 | 73 | 73.5 | |
| SA | 74.5 | 74 | 73.5 | 73.5 | |
| HTTL | 510 | 530 | 545 | 560 | |
| ATTL | - | - | - | - | |
| HT Length | 120 | 130 | 150 | 170 | |
| STCT | 463 | 493 | 523 | 533 | |
| BBD | 72 | 70 | 70 | 70 | |
| CS | 408 | 409 | 410 | 410 | |
| FC | 578 | 579 | 580 | 588 | |
| WB | 975 | 978 | 980 | 988 | |
| SOH | - | - | - | - | |
| Fork L | 370 | 370 | 370 | 370 | |
| OF | 52 | 52 | 43 | 43 | |
| Reach | 364 | 375 | 382 | 389 | |
| Stack | 519 | 532 | 556 | 577 | |
| 適応身長(cm) | 160～170 | 165～175 | 170～180 | 180～190 |
