GRATER 1

SPEC

MODELグレーター 1
PRICE74,000円(税抜)
SIZESS、M

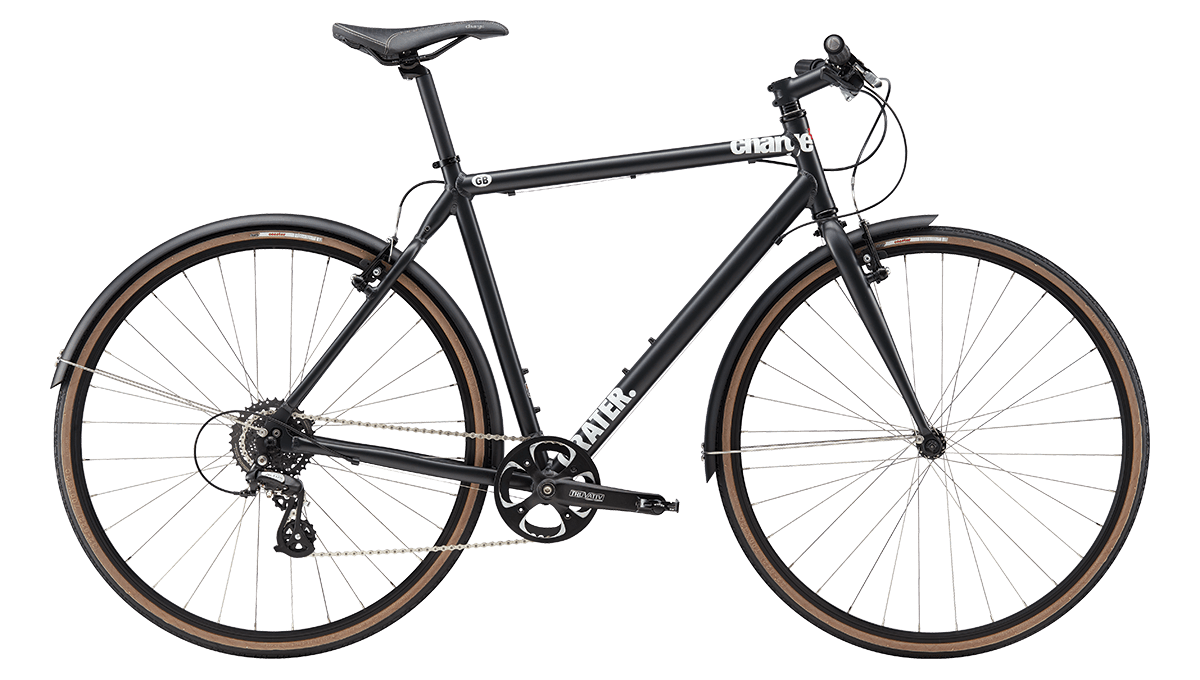

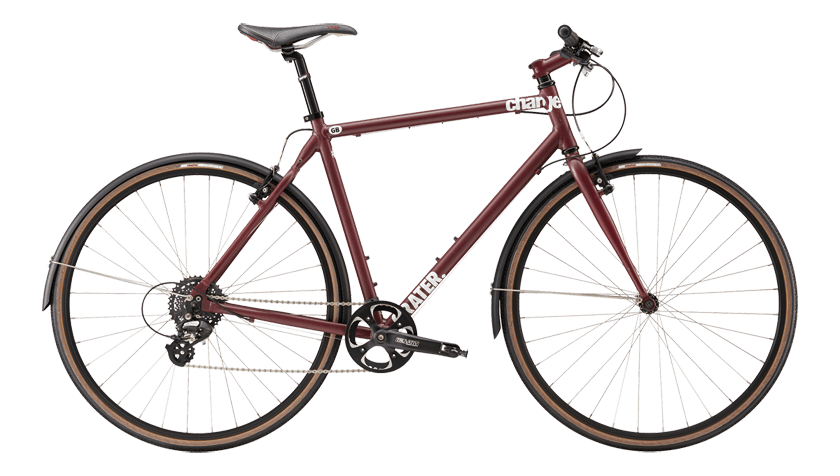

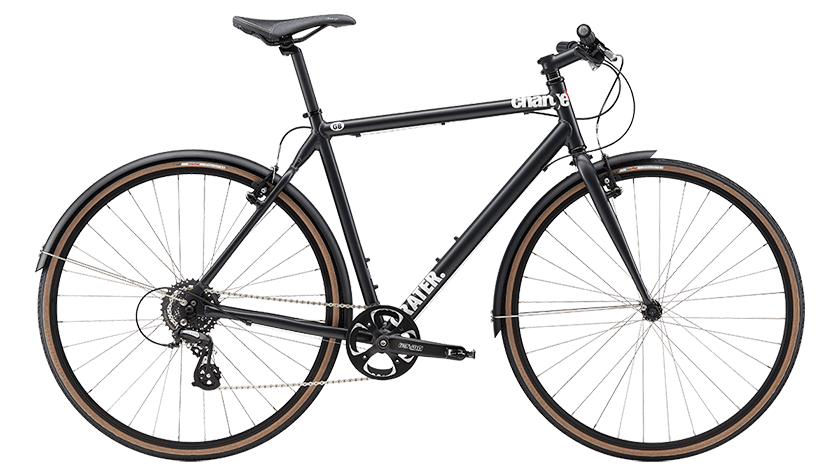

COLOURサテンチャコール、サンドレッド
GEARS8 Speed.
FRAME6061 alloy PG tubing. Rack and fender mounts.
FORKCharge Whisk steel.
FENDERSPC full length.
CRANKSETTruvativ E400. 38t. With trouser guard.
DERAILLEURSShimano Altus M310.
SHIFTERSShimano Altus M310.
CASSETTE11-34t Shimano CS-HG31-8.
RIMS700c Charge Urban.
FRONT HUBCharge looseball.
REAR HUBCharge looseball cassette.
TYRES700×32c Charge Coaster.
BRAKESTektro BX1-V Promax BL-46 levers.
SADDLECharge Spoon.
GRIPSCharge Plunger shorty.
HANDLEBAR660mm Charge Urban.
STEM31.8mm Charge.
HEADSETFSA TH-882.
CHAINKMC.
BBFSA sealed. Square taper.
SEAT CLAMPCharge bolt type.
SEAT POSTCharge Lite.
SPOKES14g stainless.
PEDALSWellgo alloy trekking.

GEOMETRY

Size S M
Seat Tube 500 540
Actual Top Tube 533 547
Effective Top Tube 555 565
Stand Over - -
Head Angle 71.5 71.5
Head Tube 140.0 150.0
Seat Angle 73.0 73.0
Chainstay 435 435
Wheel Base 1025 1035
BB Drop 69 69
Fork 395 395

LINE UP

GRATER 0
65,000円(税抜)
GRATER 1
74,000円(税抜)
GRATER 2
100,000円(税抜)
GRATER MIXTE 0
59,800円(税抜)
GRATER MIXTE 1
74,800円(税抜)
