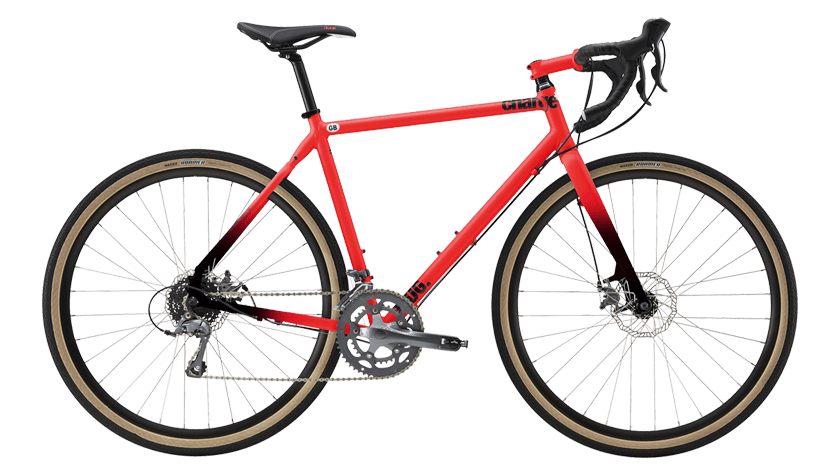

PLUG 4

SPEC

MODELプラグ 4
PRICE170,000円(税抜)
SIZESラヴァフェイド/S、M サテンブラウン/S、M、L
COLOURラヴァフェイド、サテンブラック
GEARS22 Speed.
FRAME6061 series butted aluminium. Custom dropout. Rack and fender mounts.
FORKCarbon straight blade. Post mount disc.
CRANKSET50/34t Shimano RS500. Hollowtech II.
DERAILLEURSShimano 105.
SHIFTERSShimano 105.
CASSETTE11-32t Shimano CS-5800.
RIMSTubeless ready Alex DRAW 1.9P disc.
FRONT HUBCharge Lite disc looseball.
REAR HUBCharge Lite disc looseball cassette.
TYRES700×42c custom skinwall Maxxis Roamer.
BRAKESPromax Render-R calipers. Shimano 105 STI shifters. 160mm rotors.
SADDLECharge Spoon.
GRIPSFabric, Rip tape, 1mm gel backing. (Lavafade)、Charge U-Bend 45°. (SatinBlack)
HANDLEBARCharge compact lite, 12° flare.
STEMCharge Lite 31.8mm.
HEADSETFSA No.16 integrated.
CHAINKMC X-11.
BBShimano outboard.
SEAT CLAMPCharge bolt type.
SEAT POSTCharge 3D Lite. Single bolt.
SPOKESStainless double butted 14g.
PEDALSWellgo alloy trekking.

GEOMETRY

Size S M L
Seat Tube 500 540 570
Actual Top Tube 534 549 563
Effective Top Tube 555 565 575
Stand Over - - -
Head Angle 71.5 71.5 71.5
Head Tube 140.0 150.0 160.0
Seat Angle 73.0 73.0 73.0
Chainstay 435 435 435
Wheel Base 1025 1035 1045
BB Drop 69 69 69
Fork 400 400 400
