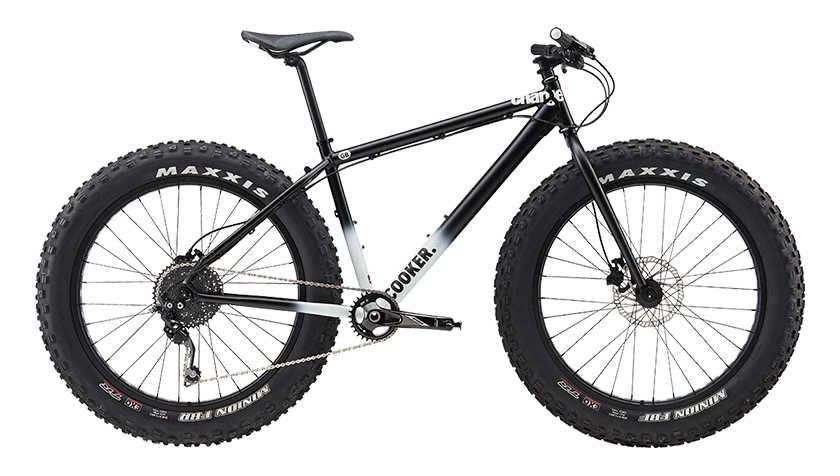

COOKER MAXI 1

SPEC

MODELクッカー マキシ 1
PRICE160,000円(税抜)
SIZESS、M
COLOURブラックフェイド、グロスレッド
GEARS10 Speed.
FRAME6061 Series, butted aluminium. 190 OLD. (Blackfade)、6061 Series, butted aluminium. Offset 135 OLD. (GlossRed)
FORKLightweight triple butted cro-mo. Rigid specific.
CRANKSETFSA Comet, megatooth, 30t.
DERAILLEURSShimano Deore Plus,10/s. (Blackfade)、SRAM HDM X5. (GlossRed)
SHIFTERSShimano Deore 10/s. (Blackfade)、SRAM X5. (GlossRed)
CASSETTESunrace, 10spd 11-42t. (Blackfade)、11-36t SRAM PG 1020. (GlossRed)
RIMSCharge Fat 26” 80mm wide.
FRONT HUBCharge-Lite Fat disc.
REAR HUBCharge disc looseball cassette.
TYRESTubeless ready Maxxis Minion. 26×4.8”. 120tpi. Folding bead. (Blackfade)、Tubeless ready Maxxis Mammoth. 26×4.0”. 120tpi. Folding bead. (GlossRed)
BRAKESTektro HDC-330 Tektro, F/180mm, R/160mm. (Blackfade)、Pro max Render, cable disc levers. 180mm/160mm rotors. (GlossRed)
SADDLECharge Spoon.
GRIPSCharge Square lock-on.
HANDLEBARCharge flat top riser. 15° back sweep.
STEM31.8mm Charge.
HEADSETFSA TH-857.
CHAINKMC X10, nickel plated.
BBFSA EXO.
SEAT CLAMPCharge single bolt.
SEAT POSTCharge 15mm layback.
SPOKES14g stainless.
PEDALSMTB alloy.

GEOMETRY

BlackFade GlossRed
Size S M S M
Seat Tube 395 446 395 446
Actual Top Tube 560 580 562 579
Effective Top Tube 582 603 582 603
Stand Over 778 792 778 792
Head Angle 70.5 70.5 71 71
Head Tube 105 115 105 115
Seat Angle 73.5 73.5 73.5 73.5
Chainstay 455 455 450 450
Wheel Base 1087 1108 1087 1108
BB Drop 50 50 50 50
Fork - - - -

LINE UP

COOKER MIDI 0
120,000円(税抜)
COOKER MIDI 1
140,000円(税抜)
COOKER MIDI 2
170,000円(税抜)
COOKER MIDI 3
210,000円(税抜)
COOKER MAXI 1
160,000円(税抜)
COOKER MAXI 2 Green Fade
190,000円(税抜)
COOKER MAXI 2 Gloss Blue
190,000円(税抜)
